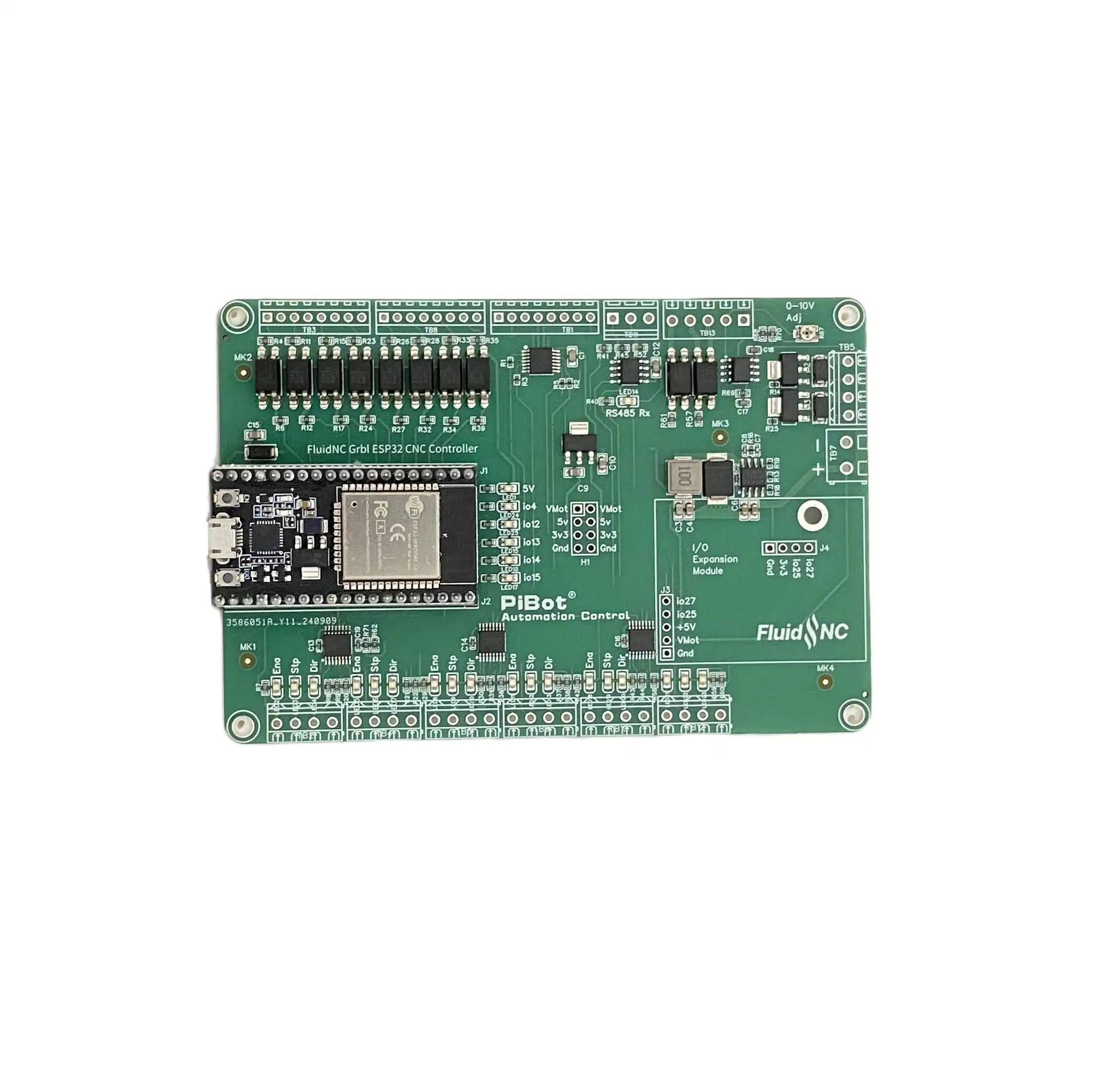

The FluidNC 6-Axis CNC Controller is a powerful, Wi-Fi-enabled motion control board built on the ESP32 platform, offering advanced multi-axis control for custom CNC machines, laser cutters, plasma systems, and robotics applications.
Running FluidNC firmware, this controller supports up to 6 independent axes, each configurable for custom kinematics or multi-head setups. With native web UI access, real-time G-code streaming, and support for UART-controlled stepper drivers (like TMC2209, TMC5160, A4988, etc.), it offers unmatched flexibility and ease of use.
Ideal for advanced builders, educators, and OEMs, the board features modular I/O, PWM laser/spindle outputs, endstop and probe support, and full compatibility with GRBL-based software like LightBurn, CNCjs, and UGS.
Key Features:
- 6-Axis Motion Control – Run complex CNC machines, robots, or multi-tool systems
- ESP32 with FluidNC Firmware – Web UI, Wi-Fi, real-time G-code control
- Modular Stepper Driver Support – Compatible with TMC2209, A4988, DRV8825, etc.
- Flexible I/O – Endstops, probes, PWM spindle/laser control, servo support
- GRBL-Compatible G-Code – Works with LightBurn, CNCjs, LaserGRBL, UGS
- Custom Kinematics – Ideal for Delta, CoreXY, Scara, or 6DOF systems
Specifications:
- Microcontroller: ESP32 Dual-Core
- Axes Supported: Up to 6 (X, Y, Z, A, B, C)
- Driver Interface: STEP/DIR, UART (TMC), SPI (optional)
- Outputs: PWM for laser/spindle, optional relay support
- Inputs: Endstops (NC/NO), Probe, Door, Hold, Resume
- Power Input: 12–24V DC
- Connectivity: Wi-Fi, Web UI, Serial (USB optional)
Applications:
- 3D Routers & CNC Mills (3, 4, 5, 6 Axis)
- Laser Cutters & Engravers
- Plasma CNC Tables
- SCARA Robots & Delta Printers
- Multi-Tool Systems & Gantry Automation
- Educational CNC Platforms & Research Projects

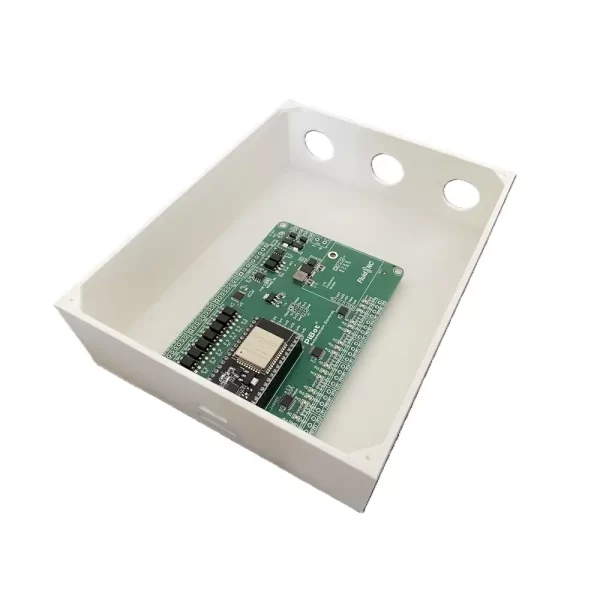

Note: Enclosure box is not included, need to purchase separately
